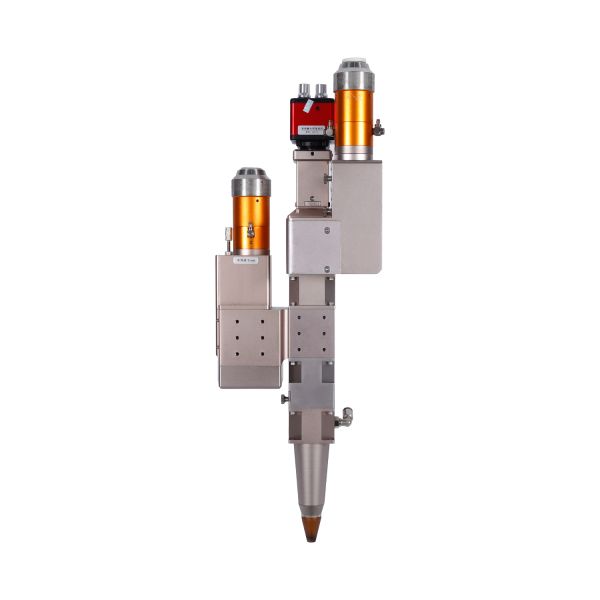

Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum

  • 1
  • 2
  • 3

Brand Name : HanWei

Model Number : HW-DFH-70100200-QBH

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 Set

Price : USD / Set

Payment Terms : T/T

Supply Ability : 2000 Sets / year

Delivery Time : 10 working days

Packaging Details : Export Plywood Packing

Model : HW-DFH-70100200-QBH

Accessible wave range : 915nm + 1064nm

Head Type : Y

Net Weight : 2.5 Kg

Collimating length : Diode 70 – Fiber 100/120/150

Focuses length : 150/200

Interface type : QBH - QBH

Usable laser source : Diode and Fiber laser source

Laser Beam Size Adjustable : 0.5 – 5mm

Laser Beam Type : ―、○、◎、⊙、△、8

Contact Now

Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum

Hanwei Diode laser (915nm) and fiber laser (1064nm) Hybrid-laser welding can achieve diode laser source and fiber laser source coaxial recombination. It is used in thick and highly reflective metal welding (gold, silver, copper, aluminum). The reflective materials have more highly absorptivity for diode-fiber hybrid laser make less spark in welding process and achieve quality welding and nice welding surface.

Widely used in cover of power battery seal welding, with good quality and smooth welding surface to perfectly resolve battery leakage of explosion point. Greatly improve welding efficiency.

Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum
Key Features

  • Reduces welding defects and improves welding efficiency.

  • Covers all laser wavebands.

  • Has great advantages for welding thin, thick, and both wide and narrow weld joint highly reflective materials (aluminum).

  • Specially designed for welding power battery covers.

Technical Specifications
Model

HW-DFH-70100200-QBH
Accessible Wave Range 915nm + 1064nm
Usable Laser Source Diode and Fiber laser source
Focus Length 150/200
Collimating Length

Diode 70 – Fiber 100/120/150
Net Weight 2.5 Kg
Head Type Y
Interface Type QBH - QBH

Laser Beam Size Adjustable

0.5 – 5mm
Laser Beam Type

―,○,◎,⊙,△,8
Net weight

2.5 kg
Application Advantages

  • Has great advantages for welding thin, thick, and both wide and narrow weld joint highly reflective materials (aluminum).

  • Specially designed for welding power battery covers.

Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum
Diode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity AluminumDiode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity AluminumDiode-Fiber Hybrid Double Motor Laser Welding Head For High-Reflectivity Aluminum
About Shenzhen Hanwei Laser
Shenzhen Hanwei Laser is committed to making world-class laser welding technology accessible to every system integrator. As a certified national high-tech enterprise and recipient of the "specialized, sophisticated, distinctive, and novel" recognition, we focus on comprehensive R&D, production, and sales of specialized laser welding technologies.
Our Product Portfolio Includes:
  • Hybrid welding systems (blue laser + fiber, Diode + fiber, YAG + Diode)
  • YAG and Diode laser welding equipment
  • Mold repair laser welding equipment
  • QCW laser welding equipment
  • Ring-Spot laser welding equipment
  • Blue laser welding equipment
With a team of laser welding R&D experts, we serve industries including new energy batteries, automotive, electronics, and medical devices, delivering unmatched welding performance across diverse applications.
